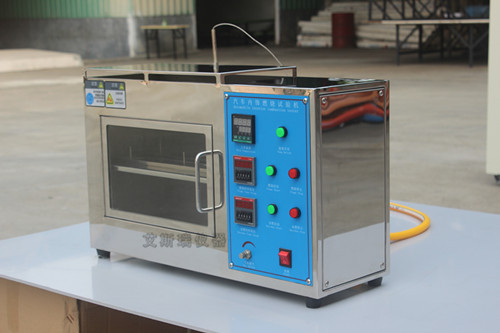

PLC汽車內飾阻燃試驗機的詳細描述：

PLC automotive interior flame retardant testing machine details:

應用范圍：該燃燒測試設備適用于識別汽車（汽車，多功能乘用車，卡車和乘用車）內部材料的水平燃燒特性。

Automotive interior flame retardant testing machine for autos, cars, passenger cars, truck, passenger car, interior material level combustion characte

  PLC汽車內飾阻燃測試機符合GB8410，TL1010，GM6090M，DIN7520，GM9070P和MVSS302的標準。

Meet the standards of GB8410, TL1010, GM6090M, DIN7520, GM9070P, MVSS302.

  1.由不銹鋼盒制成，長385mm，深204mm，高360mm；

Made by stainless steel, long box 385mm, depth 204mm, height 360mm;

  2.燃燒箱底部有10個直徑為19mm的通風孔，頂部附近的四壁上有一個寬度為13mm的通風槽。

A ventilation hole is arranged at the bottom of the combustion chamber with a diameter of 10 19mm, the ventilation slot walls near the top around the width of 13mm.

 3.整個燃燒箱由4英尺10毫米高支撐。

The whole combustion chamber is supported by 4 high 10mm legs.

  PLC汽車內飾阻燃試驗機的詳細描述

在燃燒箱的頂部有一個用于插入溫度計的小孔。 該孔位于上背板的中心，中心距后面板的內側20mm。

 in the combustion box at the top has placed a thermometer hole, the hole is located in near the top of the central part and center distance inside the panel 20mm.

4. 氣體燈噴嘴的內徑為9.5mm；

The gas burner diameter is 9.5mm;

  5.噴嘴嘴的中心在樣品自由端的中心下方19mm

The center of the nozzle is in the center of the specimen free end 19mm;

  6.金屬梳的長度至少為110mm，每25mm內有7?8個光滑的圓齒。

The length of the metal comb is at least 110mm, and each 25mm has a smooth round tooth 7~8;

  7.鋼尺精度為1mm；

Steel plate ruler accuracy 1mm;

  8.交流電：220V / 50Hz

PLC汽車內飾阻燃試驗機

  9.氣源：煤氣或液化石油氣

PLC automotive interior flame retardant test machine gas: gas or liquefied petroleum gas

  10.通風櫥：燃燒箱應放在通風櫥中。 通風柜的內部容積是燃燒箱體積的20?110倍，通風柜的長度，寬度和高度不得超過其他兩個尺寸。  2.5倍 （未配置此儀器，客戶應準備）

10, ventilation cabinet: the combustion chamber should be placed in a fume hood, hood interior volume for the combustion chamber volume 20 to 110 times, and fume hood length, width, high with any size shall not more than 2.5 times of any size in the other two dimensions. (the instrument is not configured, the customer owned)
